Image Monitoring Applications

MRI imaging medical equipment has many external connector interfaces, including power signals, image signals, control signals and external processing output signals. SLK is committed to providing innovative plug-in medical imaging equipment connection solutions, which can efficiently handle the transmission needs of the above signals. SLK offers you hybrid connections which combine reliable and customized transmission connections such as signals, power, large current, high voltage and high frequency.

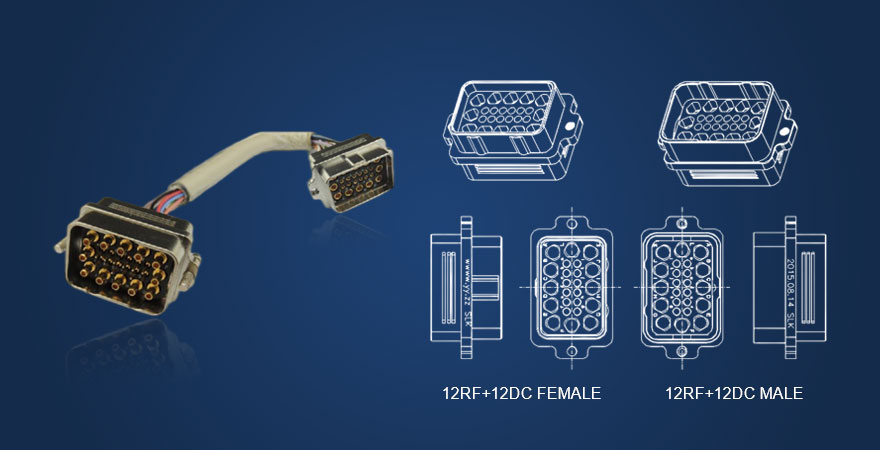

12DC+12RF Cable Assembly - MRI

Quick in-out
12 RF signals, 12 DC signals
Non-magnetic
Impedance: 50Ω
VSWR：<1.13 (DC~2.5GHz)
RF withstanding voltage: >500V
DC rated current: 3A
DC withstanding voltage: 1000V AC
DC insulation resistance: >5000MΩ

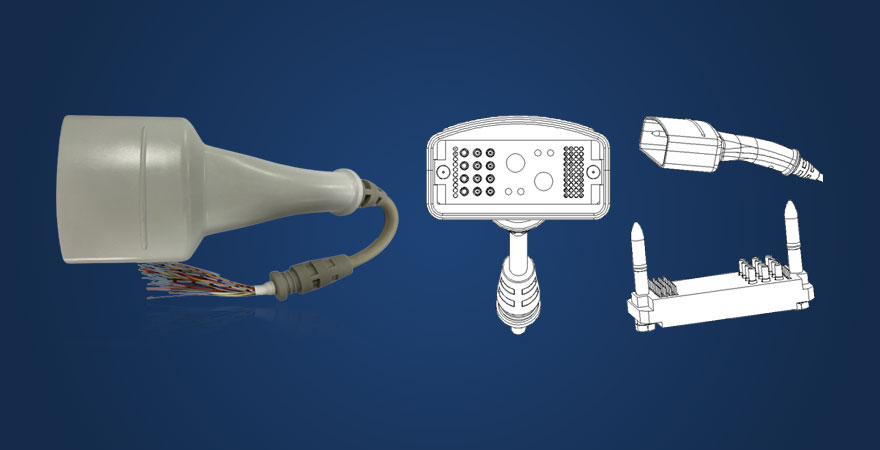

50DC+12RF Cable Assembly - MRI

Quick in-out
12 RF signals, 50 DC signals
Non-magnetic
Impedance: 50Ω
VSWR：<1.30 (DC~2.5GHz)
RF withstanding voltage: >500V
DC rating current: 5A
DC withstanding voltage: 1000V AC
DC insulation resistance: >5000MΩ
