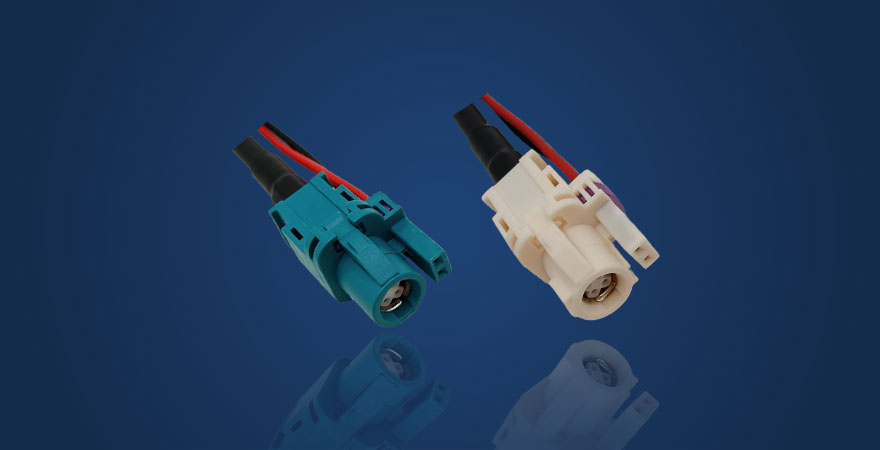

Main characteristics
- Supports signal rates up to 6Gbps
- Multi color coding differentiation, mechanical error prevention
- 4PIN/4+2PIN, optional configuration
| Electrical performance | |
|---|---|
| Characteristic impedance | 100 Ohm |
| Frequency range | 0-6 GHz |
| working voltage | 60V rms |
| insulation resistance | ≥1000MΩ |
| Carrying capacity | ≤3 A DC@85℃ |
| coupling attenuation | ≥75dB DC to 1Ghz |
| standing-wave ratio | ≥22dB DC to 1Ghz |
| ≥18dB DC to 2Ghz | |
| mechanical properties | |
|---|---|
| Insertion and unplugging times (standard) | ≥25 |
| Insertion and removal times (waterproof) | ≥5 |
| Insertion force | ≤30N |
| Insertion force (waterproof) | ≤40N |
| separating force | ≥5N |
| Retention force | ≥110N |
| Anti Misinsertion Force | ≥80N |
