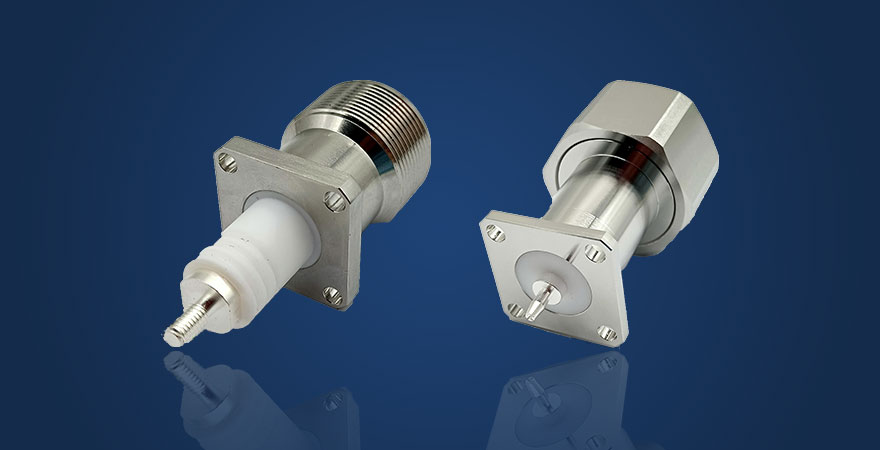

The LC series coaxial connector is a large 50Ω impedance threaded connector with large dimensions, high voltage, high shock resistance and excellent mechanical and electrical properties in accordance with US military standard MIL-STD-348.
It is designed to be compatible with .393" to 1.00" cable sizes as a coaxial connector for indoor and outdoor use for high energy transmission connections.
Electrical Performance
Characteristic impedance 50 Ω
Frequency range DC-1 GHz
Operating voltage 3000 V(rms)
Dielectric withstanding voltage 5000 V(rms)
Conductor resistance inner conductor: ≤1.0 mΩ (initial value)
Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance ≥10 GΩ
VSWR S Type: ≤1.30 (typical value)
R Type: ≤1.35 (typical value)
Mechanical Characteristics
Nut Pull ≥225 lbs
Nut Torque ≥100 inch.lbs
Center pin retention ≥45 lbs
Durability 500 cycles
Application
  • Suitable for microwave transmission, mobile communication system and other field applications
Products Series
  • Cable connectors
  • Panel Mounted Connectors
  • Adapters
