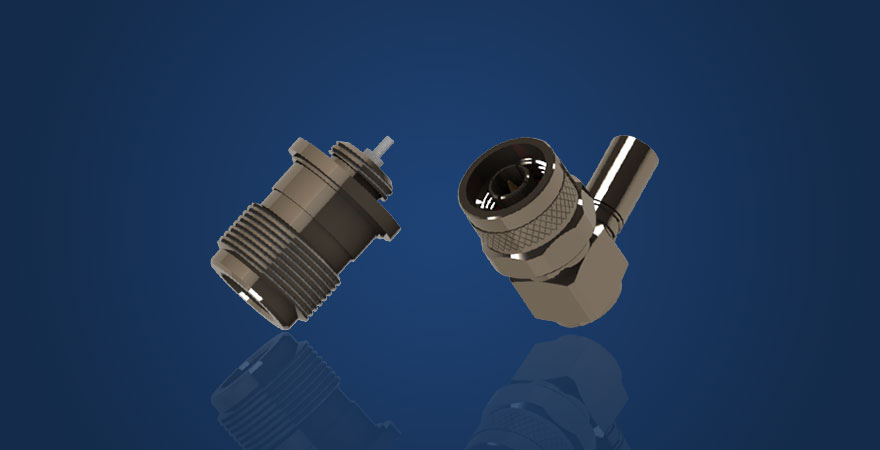

The N-Series connector is a medium power connector with a threaded connection and is one of the most widely used connectors.

It can be used at frequencies up to 18 GHz and are characterised by high shock resistance, high reliability and excellent mechanical and electrical properties in accordance with US military standard MIL-C-39012.




Electrical Performance
Characteristic impedance 50 Ω
Frequency range 0-18 GHz
Operating voltage 1000 V(rms)
Dielectric withstanding voltage 2500 V(rms)
Conductor resistance inner conductor: ≤1.0 mΩ (initial value)
Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance ≥5000 MΩ
VSWR S Type: ≤1.30 (typical value)
R Type: ≤1.35 (typical value)
Mechanical Characteristics
Central needle insertion force ≤2 lbs
Center needle pullout force ≥2 ounce
Center pin retention ≥6 lbs
Durability 500 cycles
Application
  • It is applicable to base station equipment, satellite transmission system, test instruments and other products.
  • It is widely used for radio equipment and instruments under extremely harsh environmental conditions of vibration, as well as RF coaxial cable connection in terrestrial transmission systems.


Products Series
  • Cable connectors
  • Panel Mounted Connectors
  • Adapters
