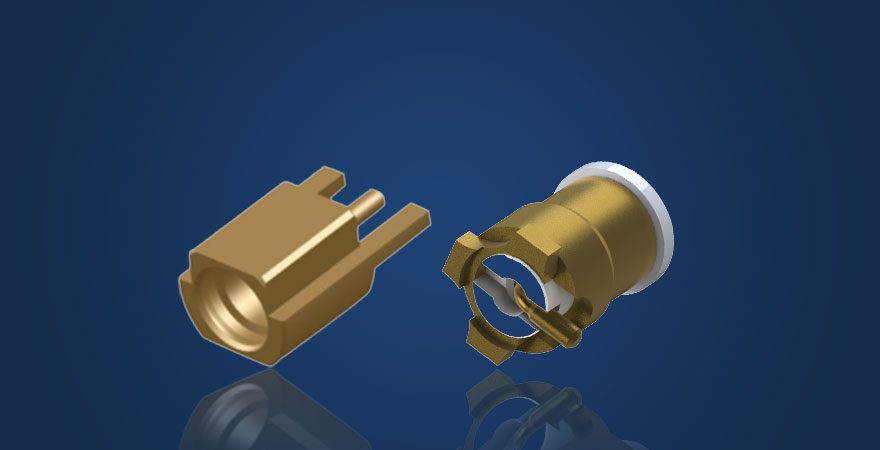

MMCX

MMCX series RF coaxial connector is an ultra-small push-in connector that is approximately 30% smaller than the MCX connector.
The product frequency up to 6GHz, small size, light weight, superior performance, good reliability, in addition to suitable for general flexible and semi-rigid cables, but also very widely used in surface mounting technology.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	0-6GHz
Operating voltage	170 V(RMS)
Operating voltage	500 V(RMS)
Conductor resistance	Inner conductor: ≤5.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤2.5 mΩ (initial value)
Insulation resistance	≥1000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical behavior
Male and female insertion force	≤4 lbs
Male and female pullout force	1.35 lbs-4 lbs
Center pin retention	≥2.25 lbs
Durability	500 times

Application

Suitable for fast connection with high frequency, internal space small applications.
It is widely used in wireless communication, industrial applications, aerospace and other fields.
Suitable for cable and printed circuit board applications .
