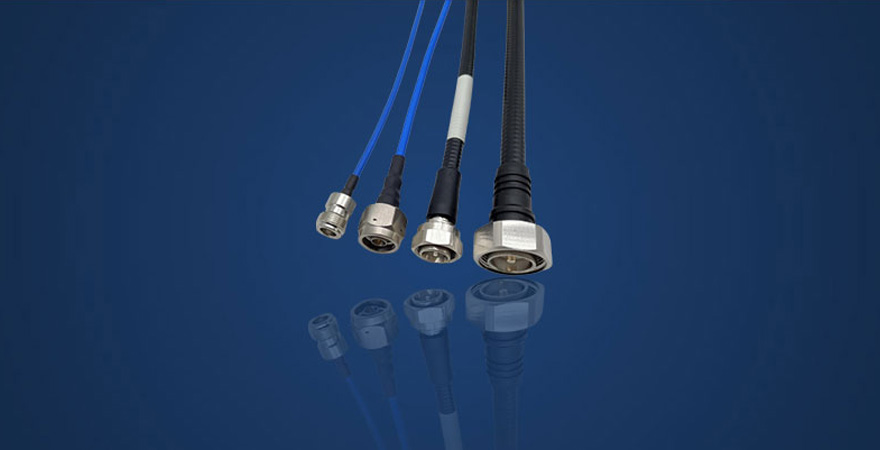

Cable assembly consists of one or several cables. The ends of each cable can be connected with required connectors by crimping、welding or spining，As a key part of the transmission system, the performance of the cable assembly will seriously affect the quality of the transmission system. The performance depends not only on the performance of the cable and connector, but also on the assembling process of the cable assembly. There are many cases of substandard performance or product failure of cable components due to improper assembly process of connectors. As a company with design, development, processing, electroplating, assembly, injection molding and testing capabilities of a full range of connectors, cables and cable components, Superlink has rich experience in design and production and high standard technology. Ensure to provide users with high reliability, high quality products.

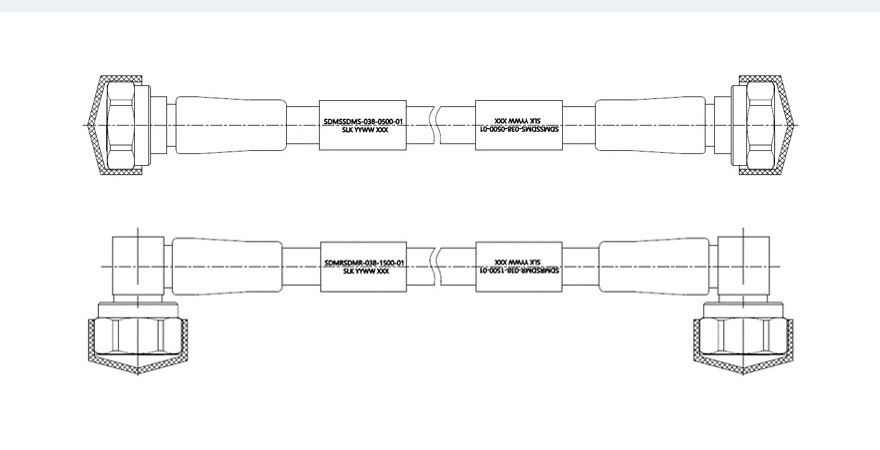

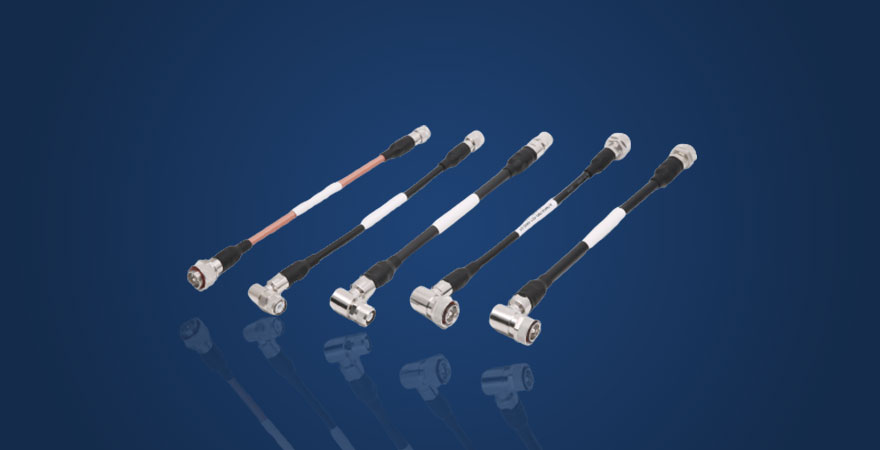

| Electronic characteristics | ||
|---|---|---|
| SPEC PARAMETER |
4.3-10 MALE S/T TO 4.3-10 MALE S/T |
4.3-10 MALE R/A TO 4.3-10 MALE R/A |
| Impedance | 50Ω | 50Ω |
| Frequency range | DC~4GHz | DC~4GHz |
| Insulation resistance | >5000MΩ | >5000MΩ |
| Contact resistance（center contact） | <1.0MΩ | <1.0MΩ |
| Contact resisitance（outer contact） | <1.0MΩ | <1.0MΩ |
| Voltage rating | 335V | 335V |
| Dielectric withstand voltage | >1000V | >1000V |
| VSWR MAX | <1.15@DC-4GHz | <1.2@DC-4GHz |
| 3rd intermodulation | <-160dBc | <-160dBc |
| Mechanical characteristics | ||
|---|---|---|
| SPEC PARAMETER |
4.3-10 MALE S/T TO 4.3-10 MALE S/T |
4.3-10 MALE R/A TO 4.3-10 MALE R/A |
| Cable static bending radius | >25mm | >25mm |
| Cable retention force | >100lbs | >100lbs |
| Nut tension | >100lbs | >100lbs |
| Nut torgue | >70in.lbs | >70in.lbs |
| Durability | >500 | >500 |
| Environmental parameter | ||
| Temperature range | -55~85℃ | -55~85℃ |
Used for interconnection within or between radio modules,usually require the interface is fast matching and the internal space is small. The main performance index is low VSWR and low loss. The interface usually as SMA, SSMA, SMB，SSMB, MCX，MMCX, SMP, SSMP，BNC, TNC， BMA，SBMA etc....,The matching cable is usually as RG174，RG316，RG142，LMR100，LMR195，LMR240，RG405，RG402，RG58 etc....
