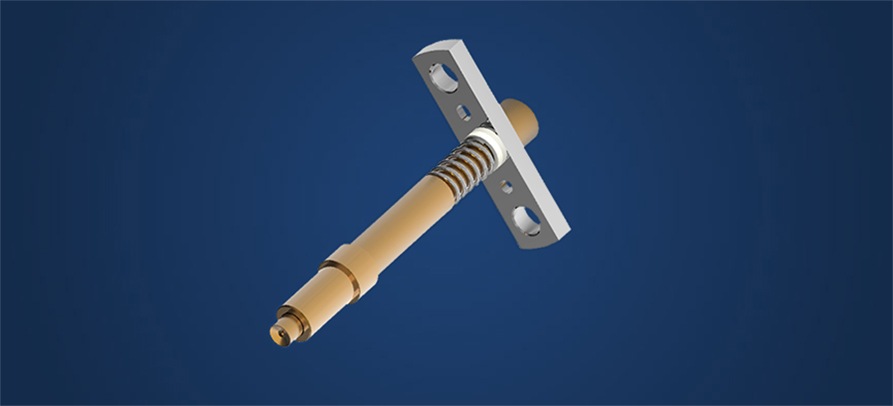

Micro RF Connector Probe

The micro RF connector probe is used as a signal relay, connects the mobile phone RF signal to the network analyser to form a loop for testing purposes.
It can be used for fast contact and separation from the RF switch, the main application scenario is mobile phone automation testing.

Attribute parameters
Characteristic impedance	50 Ohm
Frequency range	DC-12 GHz
Insertion loss	>-0.8dB@DC~12GHz
Durability	>20000次
VSWR	<1.3@DC~8GHz，<1.8@8~12GHz

Features and Advantages

Full range of models.
Frequency up to 12GHz
Up to 20,000 cycles or more

Application Scenarios

Smartphones
Terminal production testing

Product List

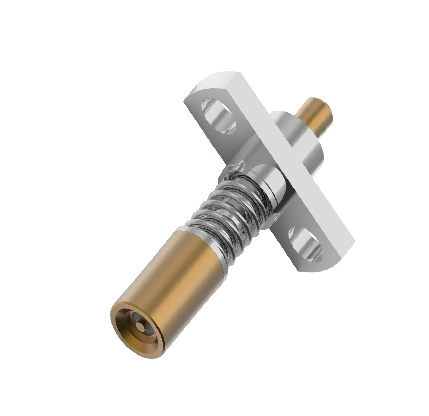

MICRO RF CONNECTOR PROBE-RF CONN I G

SLK P/N: T-5MLM06S-UFM
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.8@8~12GHz

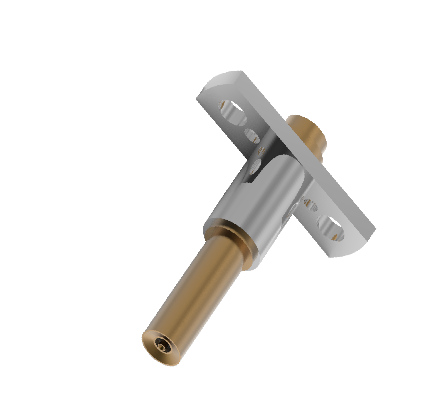

MICRO RF CONNECTOR PROBE-RF CONN III G

SLK P/N: P/N: T-5MPM06S-U5M
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.8@8~12GHz

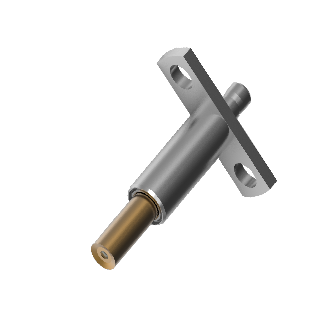

MICRO RF CONNECTOR PROBE-RF CONN III G

SLK P/N: T-5MPM06S-U5M-002
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.8@8~12GHz

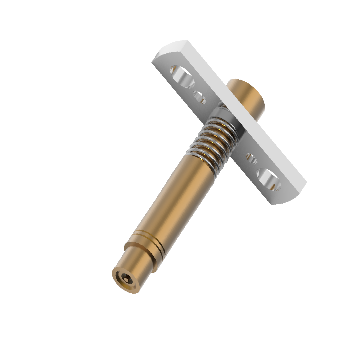

MICRO RF CONNECTOR PROBE-RF CONN III G

SLK P/N: T-5MLF06S-U5M-001
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.8@8~12GHz
MICRO RF CONNECTOR PROBE-RF CONN VI G

SLK P/N: T-5MLM06S-U6M
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.8@8~12GHz
