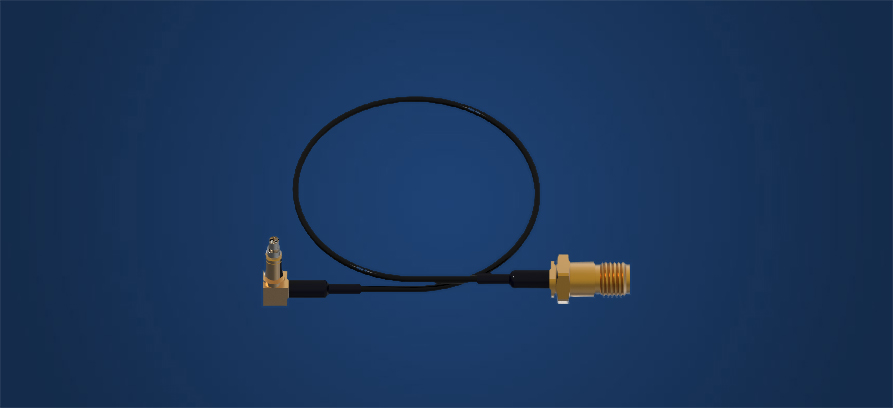

Test Leads

Probe Test Leads is usually used for quality testing by mobile phone manufacturers or for small batch prototype testing in laboratories; it is less compatible than automatic probes, does not require tooling to assist in testing and can be plugged in and out.

Attribute parameters
Characteristic impedance	50 Ohm
Frequency range	DC-12 GHz
Insertion loss	>-0.8dB@DC~12GHz
Durability	>200次
VSWR	<1.3@DC~8GHz，<1.5@8~12GHz

Features and Advantages

Full range of models
Frequency up to 12GHz
Up to 20,000 cycles or more

Application Scenarios

Smartphones
Terminal production testing

Product List

PROBE TEST CABLE-PROBE TEST CABLE FOR SWG

SLK P/N: T-MAFSWGMR077-030001
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.5@8~12GHz
PROBE TEST CABLE-PROBE TEST CABLE FOR SWH

SLK P/N: T-MAFSWHMR077-030001
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.5@8~12GHz
PROBE TEST CABLE-PROBE TEST CABLE FOR SWJ-1

SLK P/N: T-MAFSSJMR077-030002
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.5@8~12GHz
PROBE TEST CABLE-PROBE TEST CABLE FOR SWJ-2

SLK P/N:T-MAFSSJMR077-030003
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.5@8~12GHz
PROBE TEST CABLE-PROBE TEST CABLE FOR XFL

SLK P/N:T-MAFSXFMR077-030001
Frequency: DC~12GHz
VSWR: <1.3@DC~8GHz, <1.5@8~12GHz
