High Power Coaxial Cable
A variety of high-power coaxial cables are available, covering ~15KW power. Supports RF from 400KHz to 60MHz and microwave applications from 2.45GHz. Independent design, production and manufacturing to ensure controllable product quality delivery.
Cable & Connector Pairing table
Cable RG213 RG217 RG218 RG393 SPT1400
S/T R/A S/T R/A S/T R/A S/T R/A S/T R/A
N type Male
N type Female
HN type Male
HN type Female
7/16 type Male
7/16 type Female
QDM type Male
QDM type Female
LC type Male
LC type Female
QDH type Male
QDH type Female
Cable Parameters
Cable model RG213 RG214 RG217 RG393 SPT1400
Power is recommended 3KW 3KW 5KW 5KW 10KW
Media material PE PE PE PTFE PTFE
Outer Shield PVC PVC PVC FEP FEP
OD 10.3mm 10.8mm 13.8mm 9.9mm 14.3mm
Temperature Range -25℃~85℃ -25℃~70℃ -25℃~70℃ -55℃~150℃ -55℃~200℃
Attenuation 2.2dB/m 2.6dB/m 2.0dB/m 2.5dB/m 1.2dB/m
Power@13.56MHz Rated power 60℃ Outer Shield Rated power 50℃ Outer Shield Rated power 50℃ Outer Shield Rated power 60℃ Outer Shield Rated power 60℃ Outer Shield
4.4KW 4.1KW 5.1KW 4.1KW 7.2KW 5.4KW 19.7KW 5.9KW 51.5KW 12.5KW

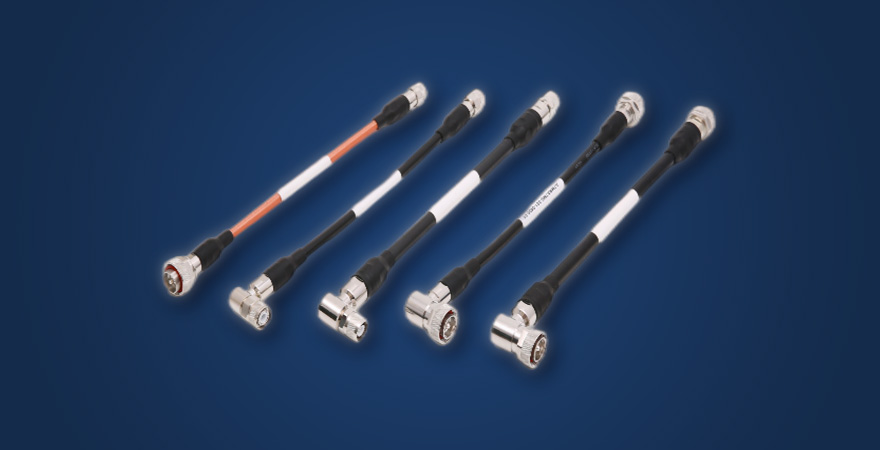

High power coaxial cable
  • A variety of high-power coaxial cables are available, covering ~15KW power.
  • Supports RF from 400KHz to 60MHz and microwave applications from 2.45GHz.
  • Independent design, production and manufacturing to ensure controllable product quality delivery.
Cable & Connector Pairing
  • Covers EIA interfaces from N, HN, 7/16DIN, LC to various sizes.
  • Provides a quick plug-in interface compatible with ODM and ODH.
  • It can be customized R & D and production, and the whole process is completed independently to ensure controllability.
  • Continuously optimize the locking reinforcement design to effectively prevent the joint from disengaging.

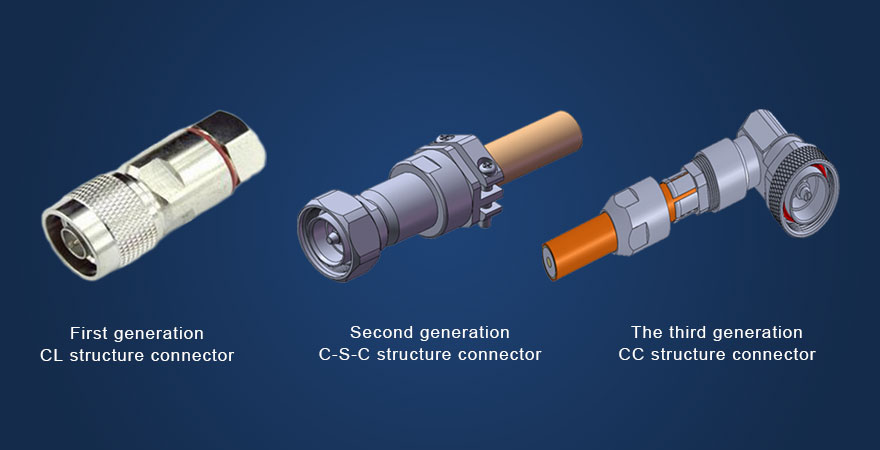

High power connector - reinforced type
  • The connector of the first generation CL structure does not protect the cable to the connector enough, and in high-power applications, the connector will loosen or fall off due to the dragging and twisting of the cable;
  • The second generation of C-S-C structure reinforced high-power connector: special tail shell bolt clamp design, can ensure that the cable assembly has good cable retention and torque strength, which is very important for high-power cable assembly;
  • 3rd generation CC reinforced high-power connector: special tail clamp clamp with lock nut tailpipe design, compared to traditional CL structure, has obvious advantages in high-power applications:
    Better cable retention, tensile performance
    Better torsional and compressive resistance
    Convenient and reliable detachable structure
