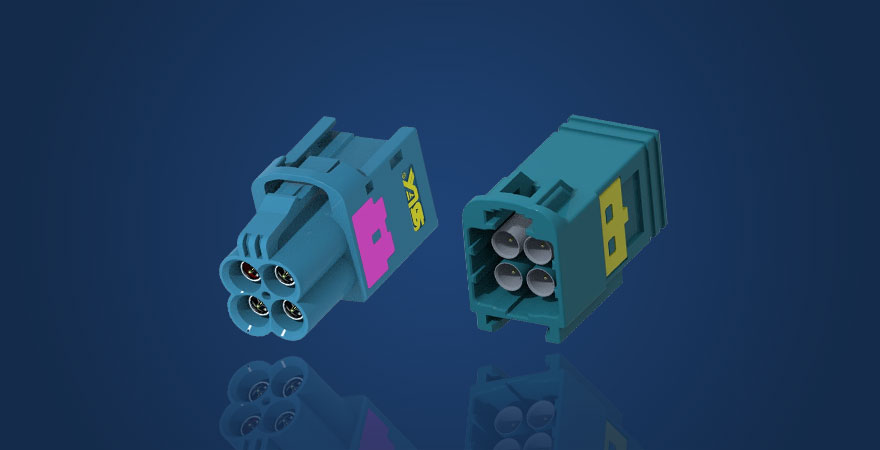

Line end connector

MiniFAKRA connectors belong to the next generation of miniaturized products of FAKRA connectors. In recent years, with the rapid development of intelligent vehicles, they have been rapidly promoted and applied in batches, serving as a key high-performance interface for intelligent vehicle computer control systems. Compared to traditional FAKRA products, this interface supports data transmission up to 20Gbps, reducing installation space by 80%,

Electrical performance
Characteristic impedance	50 Ohm
Frequency range	0-20 GHz
working voltage	60VDC
insulation resistance	≥1000MΩ
standing-wave ratio	≥ 25 dB, DC to ≤ 3 GHz
standing-wave ratio	≥ 10 dB, > 15 GHz to ≤ 20 GHz

mechanical properties
Insertion and unplugging times (standard)	≥25
Insertion force (four cell)	≤45N
Insertion force (twin)	≤ 30 N
Insertion force (unit cell)	≤ 15 N
separating force	≥5N
Retention force	≥110N
Anti Misinsertion Force	≥150N

Main characteristics

Transmission frequency: DC~15GHz
Support signal rate of 20Gbps
Small integration, can save 80% space
30% weight reduction
Multi color coding differentiation, mechanical error prevention
Multi cell/single cell, optional configuration

application area

360 degree surround view camera
Advanced Driving Assistance System (ADAS)
High broadband information and entertainment system
Remote start and vehicle control
V2X system
4K level high-definition camera
