Main characteristics
- Frequency: DC~6 GHz
- Quick insertion and detachment
- Compact size, supports blind insertion
- Waterproof IP69K (matching male head)
- Highly reliable contact
SMB is a small push-in RF coaxial connector with characteristics such as small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments. The internal contact of the FAKRA connector is the SMB connector.

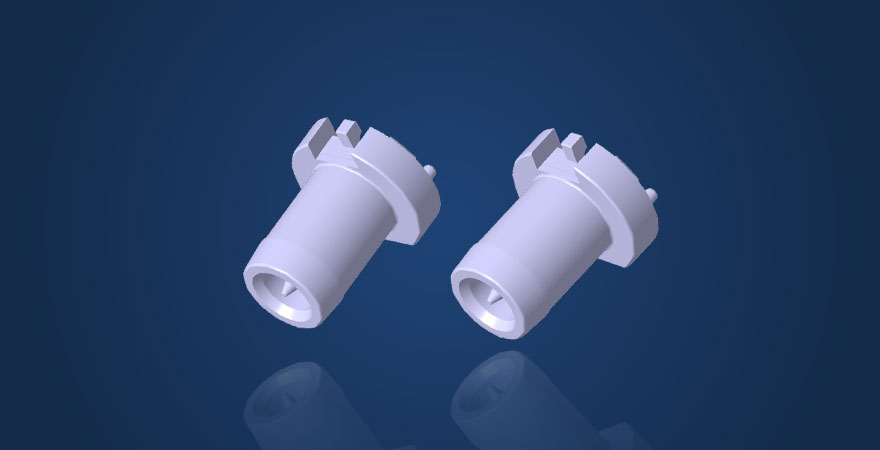

SMB1+2 is a practical type of connector developed by QuickLink, and its structural dimensions and waterproof requirements can be customized according to user requirements.
| Electrical performance | |
|---|---|
| Characteristic impedance | 100 Ohm |
| Frequency range | 0-10 GHz |
| working voltage | 60VDC |
| insulation resistance | ≥1000MΩ |
| Carrying capacity | ≤1.5A DC@85℃ |
| standing-wave ratio | ≥17dB@6GHz |
| ≥15dB@10GHz | |
| mechanical properties | |
|---|---|
| Insertion and unplugging times (standard) | ≥25 |
| Insertion force | ≤45N |
| separating force | ≥45N |
| Retention force | ≥110N |
| Anti Misinsertion Force | ≥150N |
