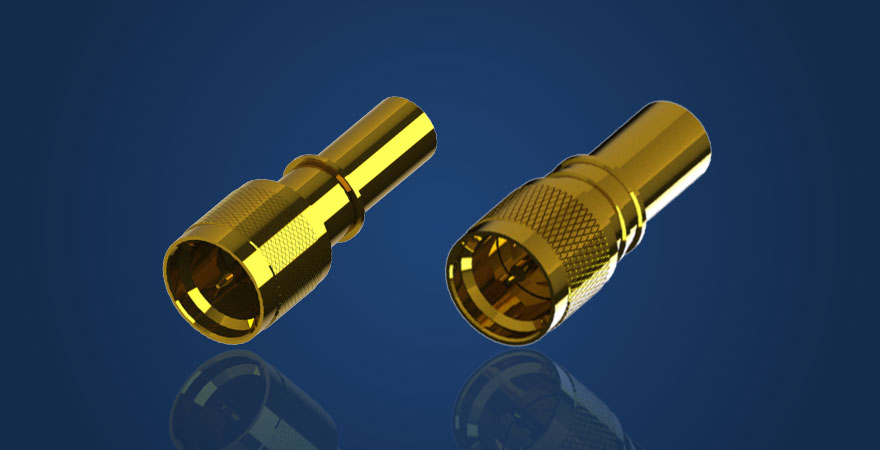

MINI-UHF
MINI-UHF and UHF series of RF coaxial connectors are commonly used in low-frequency applications. They have the characteristics of low cost and low combined requirements, and are generally used in radio broadcast receivers and public transmission systems.
MINI-UHF is a scaled-down scaled-down version of UHF connectors used in telephone communication systems.
Electrical Performance
Impedance 50 Ohm
Frequency range DC-2.5 GHz
Operating voltage 830 V(rms)
Dielectric Withstanding Voltage 2500 V(rms)
Conductor resistance Inner conductor: ≤5.0 mΩ (initial value)
Outer conductor: ≤3.0 mΩ (initial value)
Insulation resistance ≥5000 mΩ
VSWR Straight: ≤1.30 (typical value)
Right angle: ≤1.35 (typical value)
Mechanical Characteristics
Nut pull force ≥80 lbs
Nut torque ≥15 inch lbs
Center pin retention ≥6 lbs
Durability >500 times
Application
  • 1.The network system
  • 2. Meter and instrument
  • 3. Telephone communication system
  • 4. National defence or aerospace applications
Products Series
  • PCB mounting connectors
  • Crimp connectors for cable
