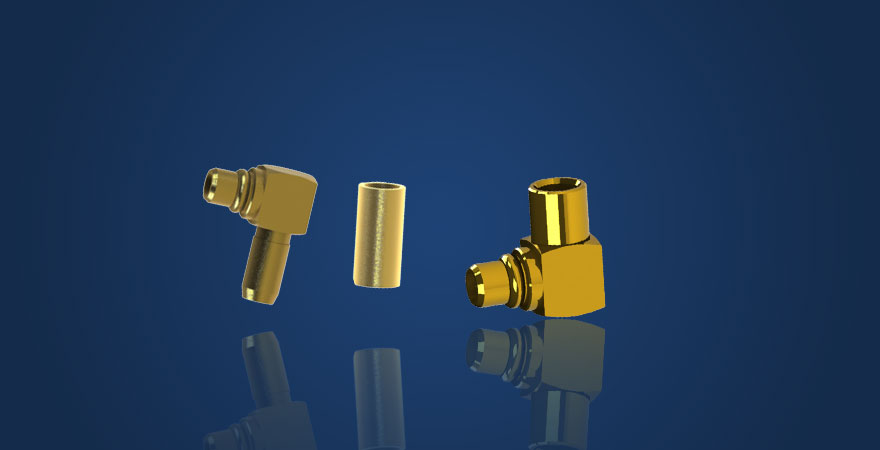

MMCX

The MMCX series of RF coaxial connectors is an ultra-small push-in connector that is approximately 30% smaller than the MMCX connector.
The frequency up to 6GHz, small size, light weight, superior performance, good reliability. it is suitable for general flexible and semi-rigid cables, but also very widely used in surface mounting technology.

Electrical Performance
Impedance	50 Ohm
Frequency range	0-6GHz
Operating voltage	170 V(RMS)
Work Voltage	500 V(RMS)
Conductor resistance	Inner conductor: ≤5.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤2.5 mΩ (initial value)
Insulation resistance	≥1000 mΩ
VSWR	Straight: ≤1.30 (typical value)
VSWR	Right angle: ≤1.35 (typical value)

Mechanical behavior
Insertion force	≤4 lbs
pullout force	1.35 lbs-4 lbs
Center pin retention	≥2.25 lbs
Durability	500 times

Application

It is suitable for fast connection on high frequency products and space limited applications.
It is widely used in wireless communication, industrial applications, aerospace and other fields.
Suitable for cable and printed circuit board applications .
