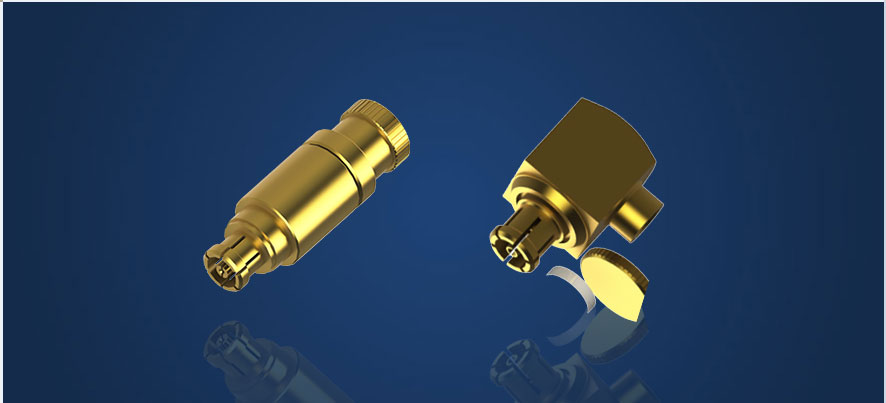

Mini-SMP has a micro-miniature interface , the size is approximately 69% of standard SMP. It is commonly used in miniaturized high frequency coaxial modules. It has two mating types, push-in and snap-in mating styles.It mainly for high-speed signal transmission.
The full locking and smooth hole mating systems provides levels of engagement/disengagement forces. Plugs are available as smooth hole version, which is for push-in technology and backplane applications, and full locking version, all apply for the highest mechanical loads such as thosein aerospace engineering.

Electrical Performance
Impedance	50 Ohm
Frequency range	0-65GHz
Operating voltage	325 V(RMS)
Dielectric Withstanding Voltage	500 V(RMS)
Conductor resistance	Center Contact: ≤6.0 mΩ (initial value)
Conductor resistance	Outer Contact: ≤2.0 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	Straight: ≤1.30 (typical value)
VSWR	Right angle: ≤1.35 (typical value)

Mechanical Characteristics
Pull-in force	Typical value: 4.5 lbs (Full Detent ) 2.5 lbs (Smooth Bore)
Pull-out force	Typical value: 6.5 lbs (Full Detent ) 1.5 lbs (Smooth Bore)
Center pin retention	≥1.5 lbs
Durability	100 times (Full Detent ) 500 times (Smooth Bore)

Application

Antennas .
Broadband .
Industrial .
Test & measurement .
Highly shielded interconnect for high speed applications .
Defence or aerospace applications .
