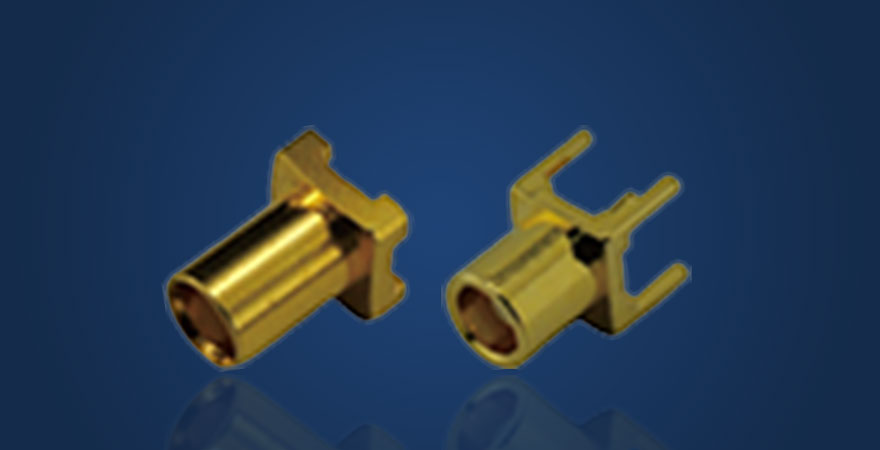

 MCX series RF coaxial connector is a small plug - in connector.
The product application frequency up to 6GHz, small size, light weight, superior performance, high reliability, mainly used in cellular phone, information system equipment,etc.
Electrical Performance
Characteristic impedance 50 Ohm
Frequency range 0-6 GHz
Operating voltage 250 V(RMS)
Medium pressure 750 V(RMS)
Conductor resistance Inner conductor: ≤5.0 mΩ (initial value)
Outer conductor: ≤2.5 mΩ (initial value)
Insulation resistance ≥1000 mΩ
VSWR Straight type: ≤1.30 (typical value)
Curved type: ≤1.30 (typical value)
Mechanical Characteristics
Male and female insertion force ≤14 lbs
Male and female pullout force 1.8 lbs-4.5 lbs
Center pin retention ≥2.25 lbs
Durability 500 times
Application
  • Suitable for fast connection with high frequency, internal space small applications.
  • It is widely used in wireless communication, industrial applications, aerospace and other fields.
  • Suitable for cable and printed circuit board applications.
Products Series
  • Connectors for coxial cables
  • PCB mounting connectors
