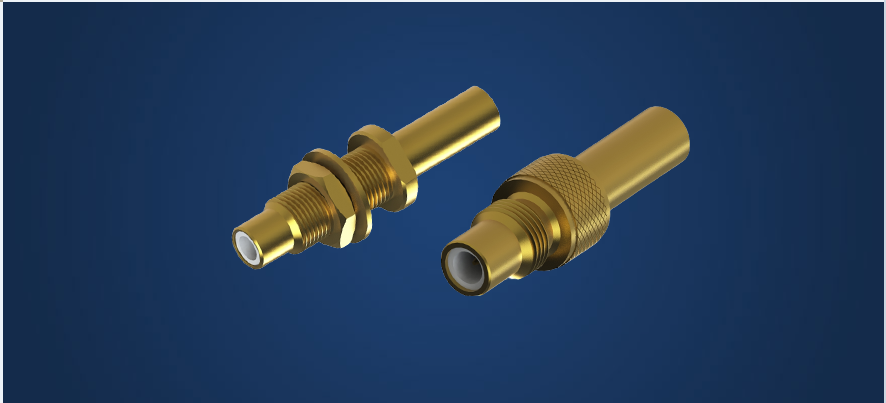

SMC

SLK SMC series RF coaxial connectors are threaded connection, its internal structure is the same as SMB design of ultra-small RF connectors.
The product application frequency up to 10GHz, small in size, light inf weight, good shock resistance, mainly used in wireless communication equipment, electronic instruments and other fields.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	0-10 GHz
Operating voltage	250 V(rms)
Medium pressure	750 V(rms)
Conductor resistance	Inner conductor: ≤6.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤1.0 mΩ (initial value)
Insulation resistance	≥1000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical Characteristics
Male and female insertion force	≤2 lbs
Male and female pullout force	≥2 ounce
Center pin retention	≥6 lbs
Durability	500 times

Application

Suitable for fast connection with high frequency, internal space small applications.
Widely used in wireless communications, industrial applications, military and high vibration environment and other applications.
Suitable for cable and printed circuit board applications.

Products Series

Connectors for coxial cables
PCB mounting connectors
