SMP

SMP series RF coaxial connector is a new type of ultra-small blind-mate RF connector.
Its application frequency is up to 40GHz.
It is small in size, excellent in electrical performance, easy to plug and unplug, and has good shock resistance.
The structural characteristics allow axial and radial directions.
There is a slight mismatch offset, which is widely used in the application of high-density blind insertion between printed circuit boards and chassis cabinets, and is used more and more widely in communication fields such as radar and aerospace.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	DC-40 GHz
Operating voltage	335 V(rms)
Medium pressure	500 V(rms)
Conductor resistance	Center Contact: ≤6.0 mΩ (initial value)
Conductor resistance	Outer Contact: ≤2.0 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical Characteristics
Male and female insertion force	Typical value: <15 lbs (Full Detent) <10 lbs (Limited Detent) <2 lbs (Smooth Bore)
Male and female pullout force	Typical value: >5 lbs (Full Detent) >2 lbs (Limited Detent) >0.5 lbs (Smooth Bore)
Center pin retention	≥1.5 lbs
Durability	>100 times (Full Detent ) >500 times (Limited Detent) >1000 times (Smooth Bore)

Application

Telecommunication
Industrial
Test & measurement
Highly shielded interconnect for high data rate applications
Defence or aerospace applications
Board-to-board

Products Series

Cable connector

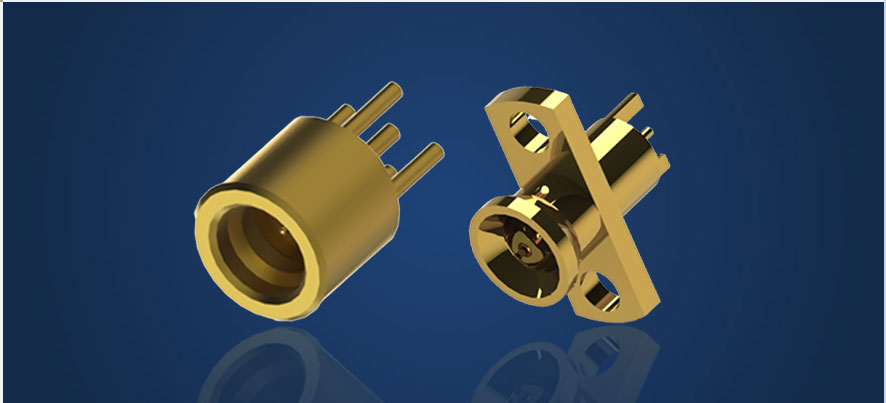

PCB mounting connectors
Adaptors & bullets in different lengths
Cable assemblies
Tools
