Application
- Change gender or as protector role ofconnector in precision measurement applications
- Transfer electric signals between connector

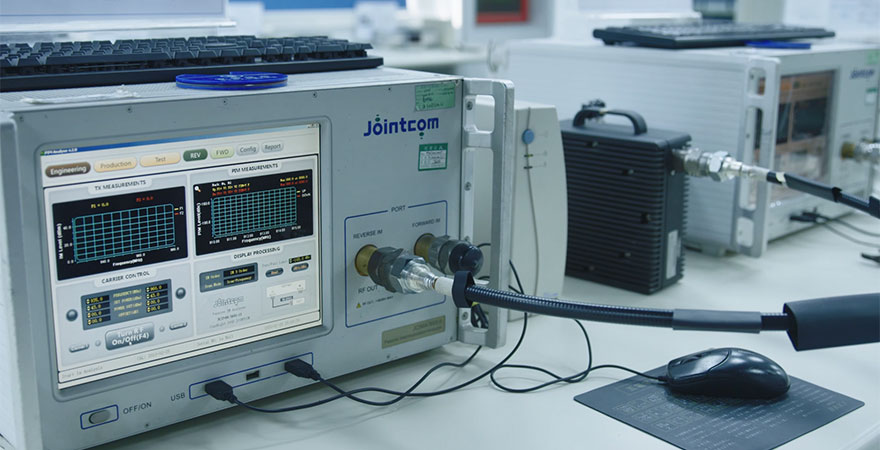

- Input or output port of instruments or equipments

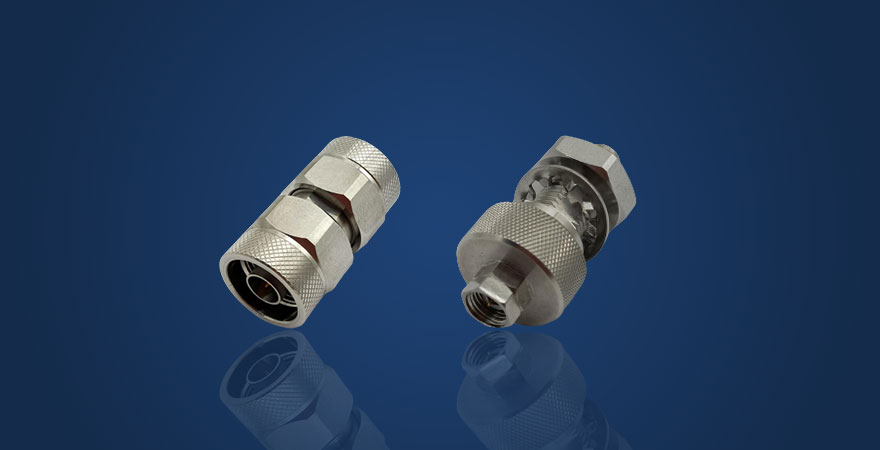

SUPERLINK provide various RF adapters, such as, adapter between same series, adapter between different series, straight or angle type adapter, panel mounted function adapter, and customized adapters.
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ohm |
| Frequency range | DC-110 GHz |
| Operating voltage | 175 V(rms) |
| Dielectric withstanding Voltage | 500 V(rms) |
| VSWR | Straight type: ≤1.20(typical value) |
| Right/Angel type: ≤1.30(typical value) | |
| Mechanical Characteristics | |
|---|---|
| Center Pin Insertion Force | According to the type |
| Center Pin Pullout force | According to the type |
| Center pin retention | ≥6 lbs |
| Durability | 500 times |
