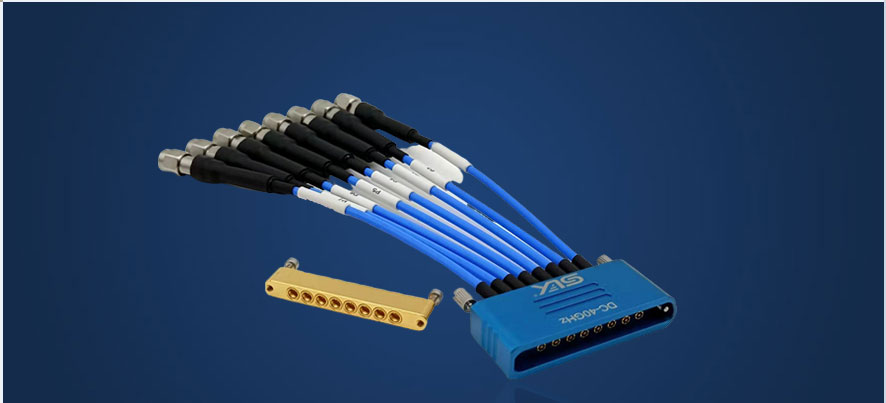

Multi-channel RF Connector
SUPERLINK offers a wide range of RF  Multiport cable assemblies and PCB connectors in various configurations, and 2, 4, 6 ,8,16 channels are available, for addressing the challenging technological demands of the semiconductor test, optical module test , board to board connecting or the other equipment industry
Electrical Performance
Characteristic impedance 50 Ohm
Frequency range DC-67 GHz
Operating voltage 175V(rms)
Medium pressure 500 V(rms)
Conductor resistance N/A
N/A
Insulation resistance ≥1000 mΩ
VSWR ≤1.4 (typical value)
Mechanical Characteristics
Center Needle Engagement Force According to design requirements
Center needle separation force According to design requirements
Center pin retention According to design requirements
Durability 500 times

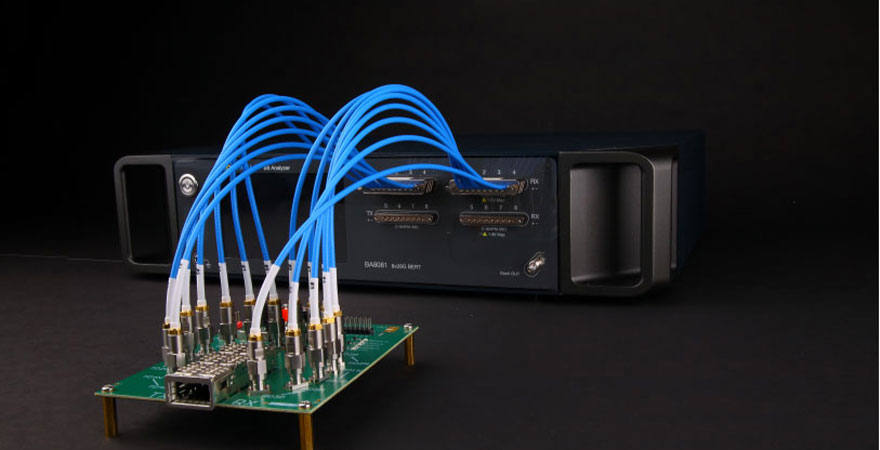

Application
  • Semiconductor test
  • Optical module test
  • Board to board connecting
Products Series
  • Cable assemblies
  • PCB connectors
