C

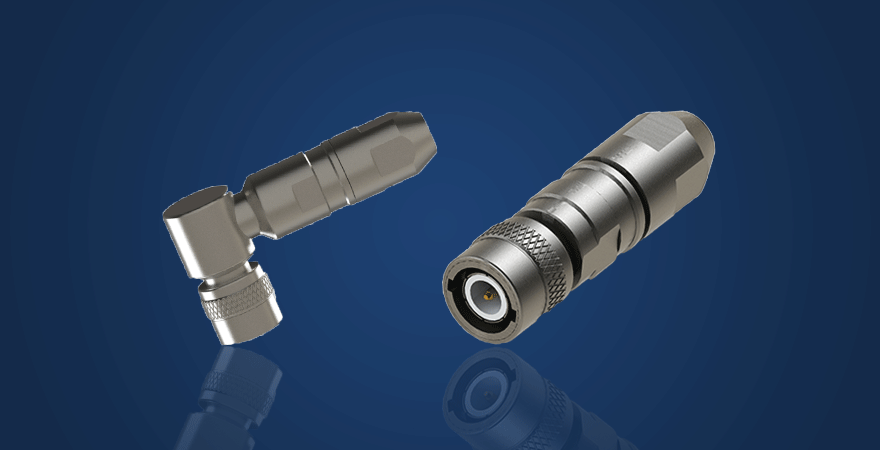

The C-type connector is a special internal bayonet standard connector, which is used in smaller quantities in the market, at frequencies up to 11 GHz and with a characteristic impedance of 50 Ω.
The C-type connector has bayonet locks at both ends for quick connection. And the C-type connector can achieve excellent waterproof level. Complies with standard MIL-STD-348.It is commonly used in instrumentation, military/aerospace and industrial applications.

Electrical Performance
Characteristic impedance	50 Ω
Frequency range	DC-11 GHz
Operating voltage	1500 V(rms)
Dielectric withstanding voltage	3000 V(rms)
Conductor resistance	inner conductor: ≤1.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance	≥5000 MΩ
VSWR	S Type: ≤1.30 (typical value)
VSWR	R Type: ≤1.35 (typical value)

Mechanical Characteristics
Center Needle Engagement Force	≤20 N
Center needle separation force	≥17 N
Center pin retention	≥6 lbs
Durability	500 cycles

Application

For applications requiring fast connections
It is suitable for Suitable for applications with environmental requirementsng good environmental protection
