Application

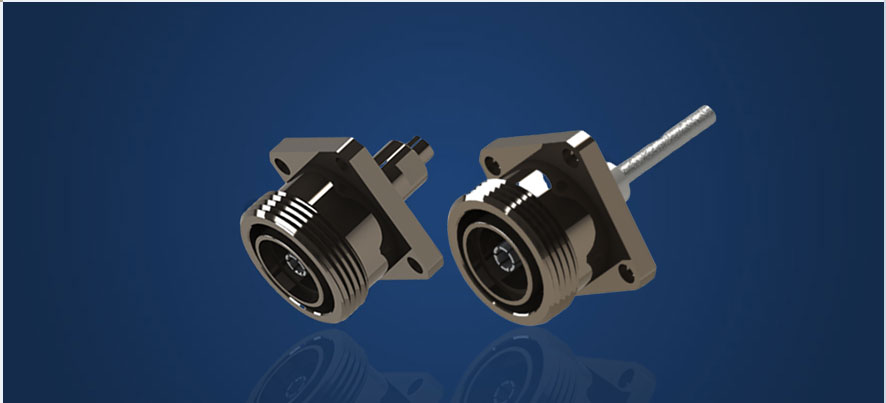

- It is commonly used in base station antenna connectors, antenna connectors, etc.

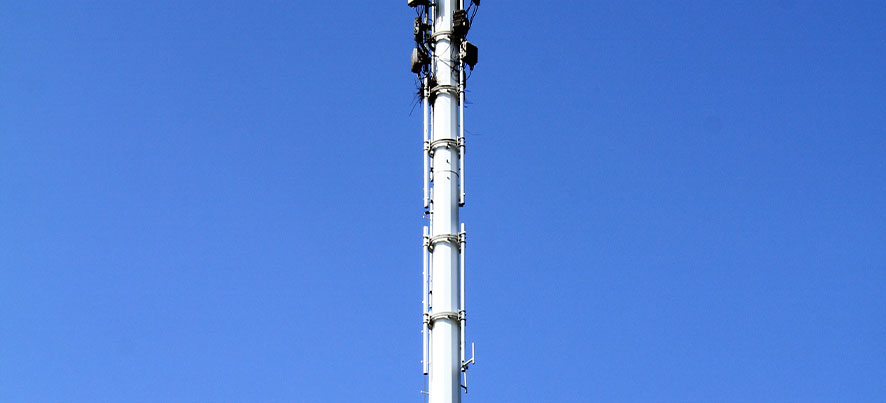

- It is suitable for radar base stations, microwave transmission, mobile communication systems and other fields
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ω |
| Frequency range | 0-7.5 GHz |
| Operating voltage | 1000 V(rms) |
| Dielectric withstanding voltage | 3000 V(rms) |
| Conductor resistance | inner conductor: ≤0.4 mΩ (initial value) |
| Outer conductor: ≤1.5 mΩ (initial value) | |
| Insulation resistance | ≥10 GΩ |
| VSWR | S Type: ≤1.30 (typical value) |
| R Type: ≤1.35 (typical value) | |
| Mechanical Characteristics | |
|---|---|
| Nut Pull | ≥225 lbs |
| Nut Torque | ≥310 inch.lbs |
| Center pin retention | ≥45 lbs |
| Durability | 500 cycles |
