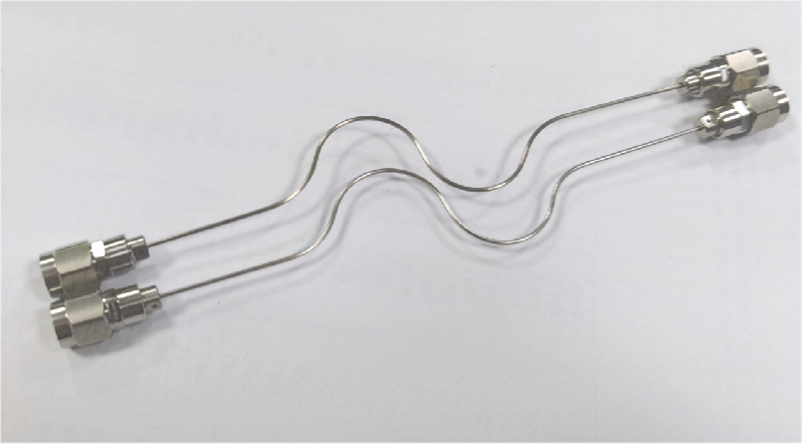

Product Introduction - Ultra Low Temperature Semi-rigid Cable

2023-07-10

Features：

The inner and outer conductors of the cable are all stainless steel;

Connectors with non-magnetic materials and surface treatment；

Ultra-low temperature 4K (-269°C) work；

low thermal conductivity

Low attenuation, low VSWR。

Application Scenario：

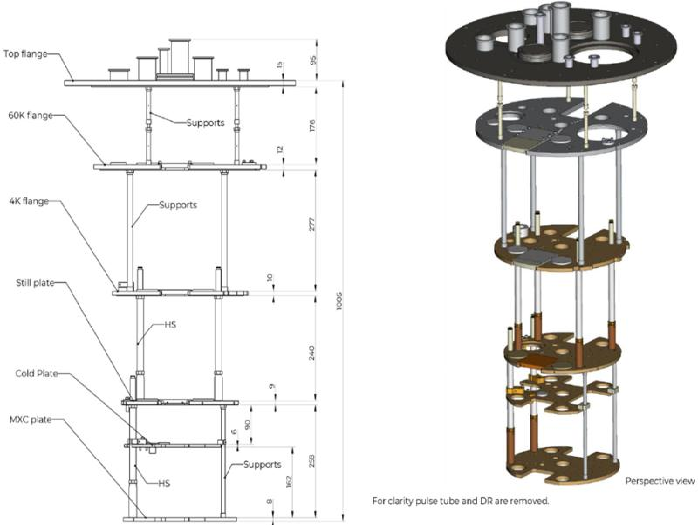

Quantum computer (ultra-low temperature environment)

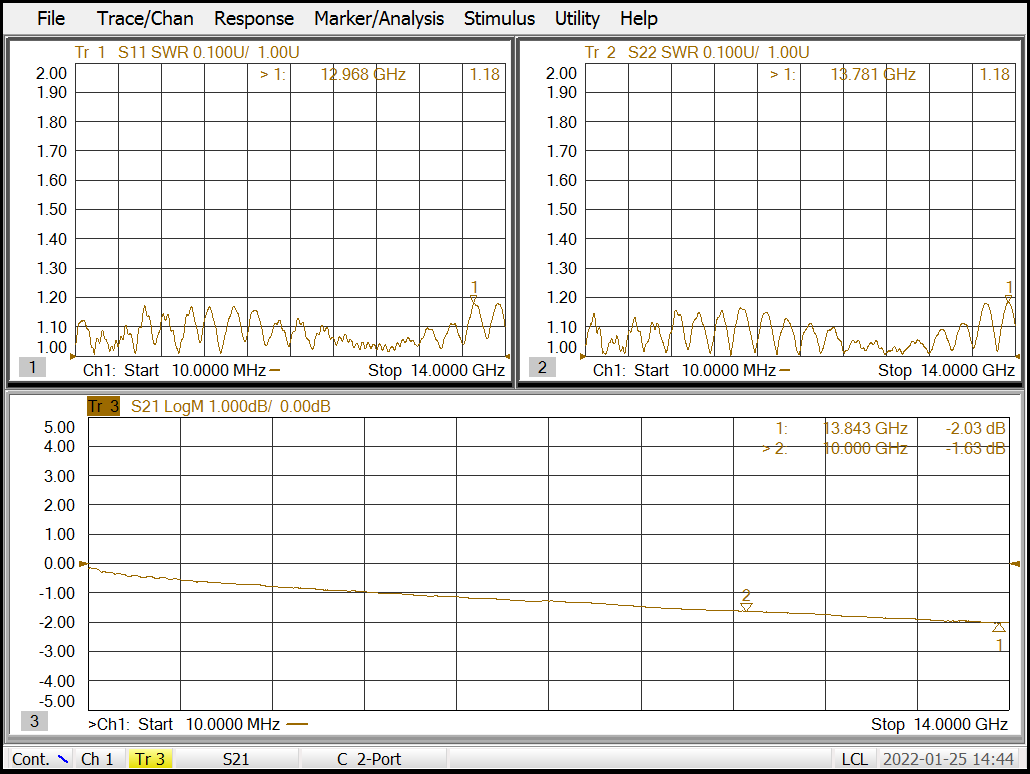

Key Performance Indicators：

usage frequency：DC～14GHz；

Characteristic impedance：50Ω

VSWR：<1.25

Insertion loss amplitude：±0.05dB

(Can be customized according to user's special requirements）
