Products | HSD series product introduction
2023-12-18

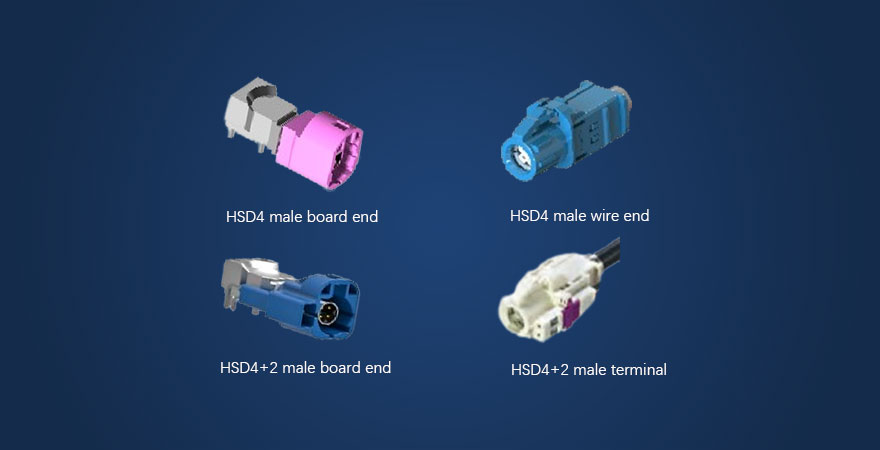

HSD connector (High Speed Data) is a high-performance data signal connector that belongs to a fully shielded interconnect system. It can prevent crosstalk and interference from external sources, with a characteristic impedance of 100 Ω. HSD connectors are two pairs of differential signal pairs that can transmit data based on low-voltage differential signals (LVDS). They are commonly used in automotive entertainment modules, cameras, head up displays, etc. They can also be used for USB 2.0/3.0, Ethernet (10Base-T1s, 100BASE-TX, 100BASE-T11000BASE-T1) specifications. In the application of the surround view ADAS system, the camera is connected to the wiring harness through a Fakra connector, and the other end of the wiring harness is connected to the HFM (Mini Fakra) connector, so that the collected data can be transmitted to the vehicle's surround view system (AVM). Then, the HSD connector is connected to the wiring harness to transmit the data to the main computer, and finally, the data is transmitted to the display screen through the HSD+2 connector.
superlink, also known as SLK, has the ability to develop, produce, assemble, test and verify high-frequency and high-speed connectors for vehicles. The product development and production process comply with the IATF16949 management system certification requirements, strictly follow the APQP product development process, and excel in high-frequency and high-speed connector solutions and structural design, simulation optimization, to meet the strict quality control requirements of the automotive industry. The company's car mounted products comply with the relevant standards of USCAR and ISO. Currently, some of the products have been mass-produced and applied to OEMs and TIER1 suppliers.
