SSMA

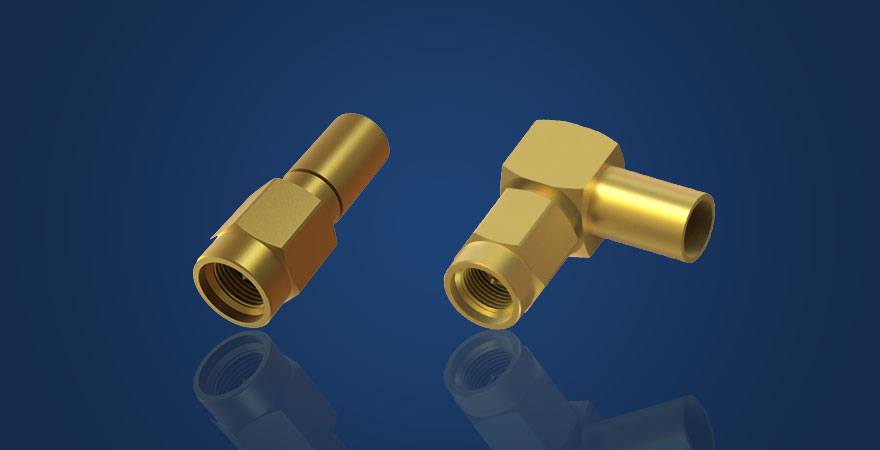

SSMA Series of RF coaxial connectors is essentially a scaled-down version of the SMA. SSMA connectors has a higher frequency than SMA due to its smaller size. The operating frequency range is DC-34 GHz.
The characteries of this interface are compactness, high frequency bandwidth, and highly reliable mechanical performance.

Electrical Performance
Impedance	50 Ohm
Frequency range	DC-34 GHz
Operating voltage	250 V(rms)
Dielectric Withstanding Voltage	750 V(rms)
Conductor resistance	Inner conductor: ≤4.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤2.5 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical behavior
Nut pull force	≥22.5 lbs
Nut torque	≥10 in·lbs
Center pin retention	≥6 lbs
Durability	>500Cycles

Application

SSMA Series RF coaxial connector is essentially a scaled-down version of the SMA.SSMA work up to a higher frequency than SMA due to its smaller sizeoperating in the range DC-34 GHz.
This interface is characterized by compactness, high frequency bandwidth, and highly reliable mechanical performance.
