Application

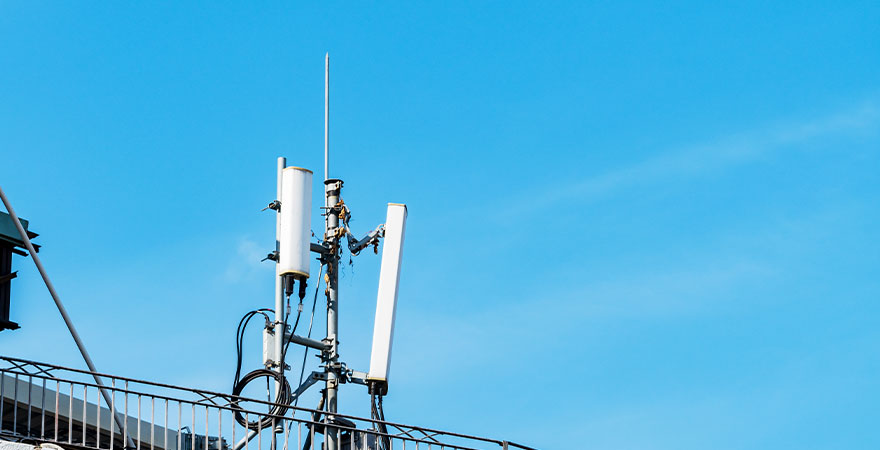

- It is widely used on base stations, distributed antenna systems, indoor base station antenna equipments, etc
- For the production and testing areas of 5G base station antennas, passive components and other manufacturers
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ohm |
| Frequency range | 0-12 GHz |
| Operating voltage | N/A |
| Dielectric withstanding voltage | 1000 V(rms) |
| Conductor resistance | Inner conductor: ≤1.0 mΩ (initial value) |
| Outer conductor: ≤1.0 mΩ (initial value) | |
| Insulation resistance | ≥5000 MΩ |
| VSWR | Straight: ≤1.30 (typical value) |
| Right angle: ≤1.35 (typical value) | |
| 3rd Intermodulation(2X20W) | ≤160 dBc(typical value) |
| Mechanical Characteristics | |
|---|---|
| Nut insertion force | ≤4.5 lbs |
| Nut torque | ≥0.35 lbs |
| Center pin retention | ≥6.75 lbs |
| Durability | 500 times |
