HN
HN series connector is a medium-sized threaded RF coaxial connector. It adopts the insulator of Teflon material to realize the full package structure. They are typically below 4GHz with an impedance of 50Ω.
It has the characteristics of good waterproof, strong shock resistance, high reliability and conforms to MIL-STD-348A standard. It is widely used in high-power working environment of base station devices, communication transmission system and medical devices.
Electrical Performance
Characteristic impedance 50 Ω
Frequency range DC-4 GHz
Operating voltage 1330 V(rms)
Dielectric withstanding voltage 4000 V(rms)
Conductor resistance inner conductor: ≤1.0 mΩ (initial value)
Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance ≥5000 MΩ
VSWR S Type: ≤1.30 (typical value)
R Type: ≤1.35 (typical value)
Mechanical Characteristics
Nut Pull ≥100 lbs
Nut Torque ≥15 inch.lbs
Center pin retention ≥6 lbs
Durability 500 cycles
Application
  • It is suitable for environments with greater withstand voltage requirements and high-power environments .
  • It can be used in place of some N-type connectors in high-voltage environments.
Products Series
  • Cable connectors

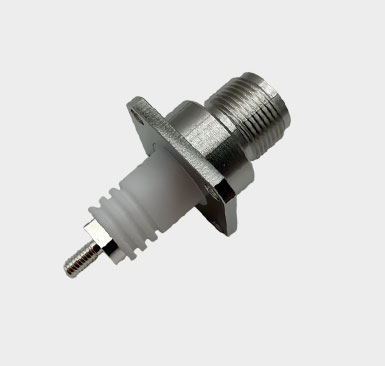

  • Panel Mounted Connectors
  • Adapters
