Application
- It is commonly used for connection between high-voltage power supply and devices in nuclear instruments or electronic measuring devices
- It is widely used in wireless communications, industrial, medical and other fields

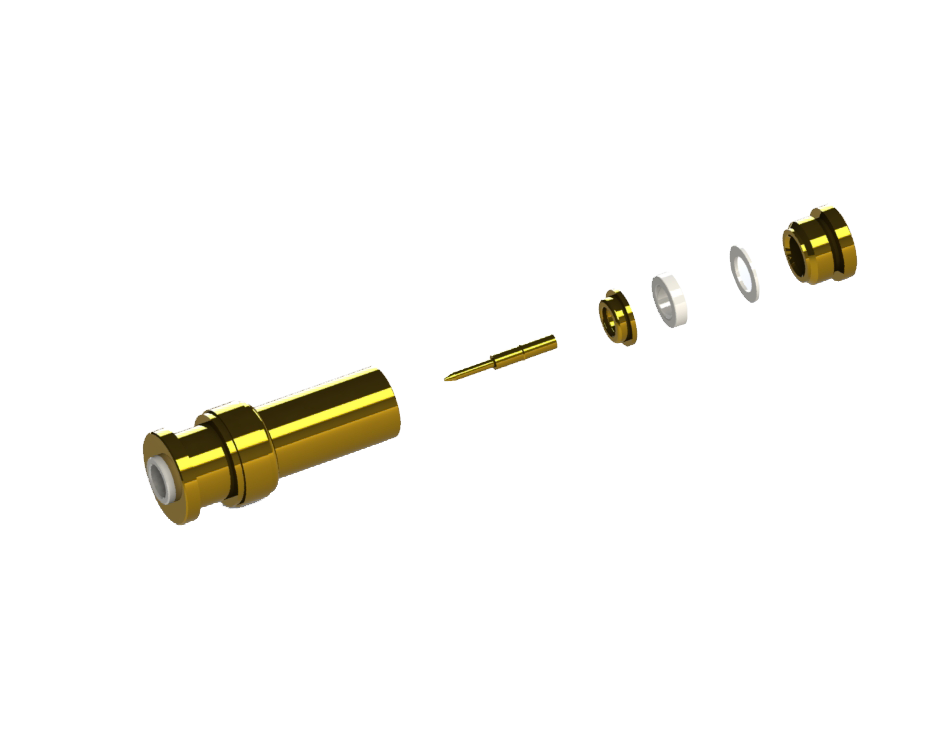

MHV (Micro High Voltage)connectors are bayonet-connected RF connectors with the advantages of easy connection, stable performance and high voltage resistance, etc.
It is similar to BNC connector, but the insulator protrudes out of the external contact, and there will be a certain degree of contact voltage when not connected.MHV connector is a coaxial miniature high-voltage connector with 5KV rms test voltage (mated). When connected, the working voltage can reach up to DC 1.6KV rms.
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ω |
| Frequency range | 0-300 MHz |
| Operating voltage | 1600 V(rms) |
| Dielectric withstanding voltage | 5000 V(rms) |
| Conductor resistance | inner conductor: ≤2.0 mΩ (initial value) |
| Outer conductor: ≤1.0 mΩ (initial value) | |
| Insulation resistance | ≥5000 MΩ |
| VSWR | S Type: N/A |
| R Type: N/A | |
| Mechanical Characteristics | |
|---|---|
| Nut Pull | ≥101.2 lbs |
| Nut Torque | 0.6-2.5 inch.lbs |
| Center pin retention | ≥6.1 lbs |
| Durability | 500 cycles |
