BNC

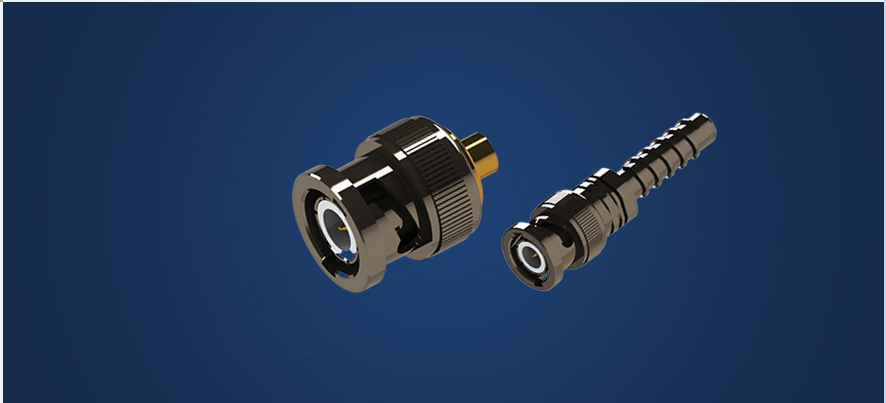

As one of the most common used RF connectors, the BNC connectors is a gype of small bayonet connector that can achieve quick connection. Its full name is Bayonet Nut Connector. This series of connectors is available in 50Ω and 75Ω impedance specifications. The BNC series of RF coaxial connector is a bayonet connector based on US military standard MIL-C-39012.
The frequency of the BNC connector is generally 0~4GHz, and its special bayonet structure makes it have the advantages with quick connection and contact reliable and other advantages.
BNC series of RF coaxial connectors are mainly used in amateur radio antennas, avionics, test equipments, and other RF electronic equipments.

Electrical Performance
Impedance	50 Ohm
Frequency range	DC-6 GHz
Operating voltage	500 V(rms)
Medium pressure	1500 V(rms)
Conductor resistance	Inner conductor: ≤1.5 mΩ (initial value)
Conductor resistance	Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Right angle: ≤1.35 (typical value)

Mechanical Characteristics
Central pin pull-in force	≤2 lbs
Center pin pull-out force	≥2 ounce
Center pin retention	≥6 lbs
Durability	500 times

Application

Suitable for applications in low power applications

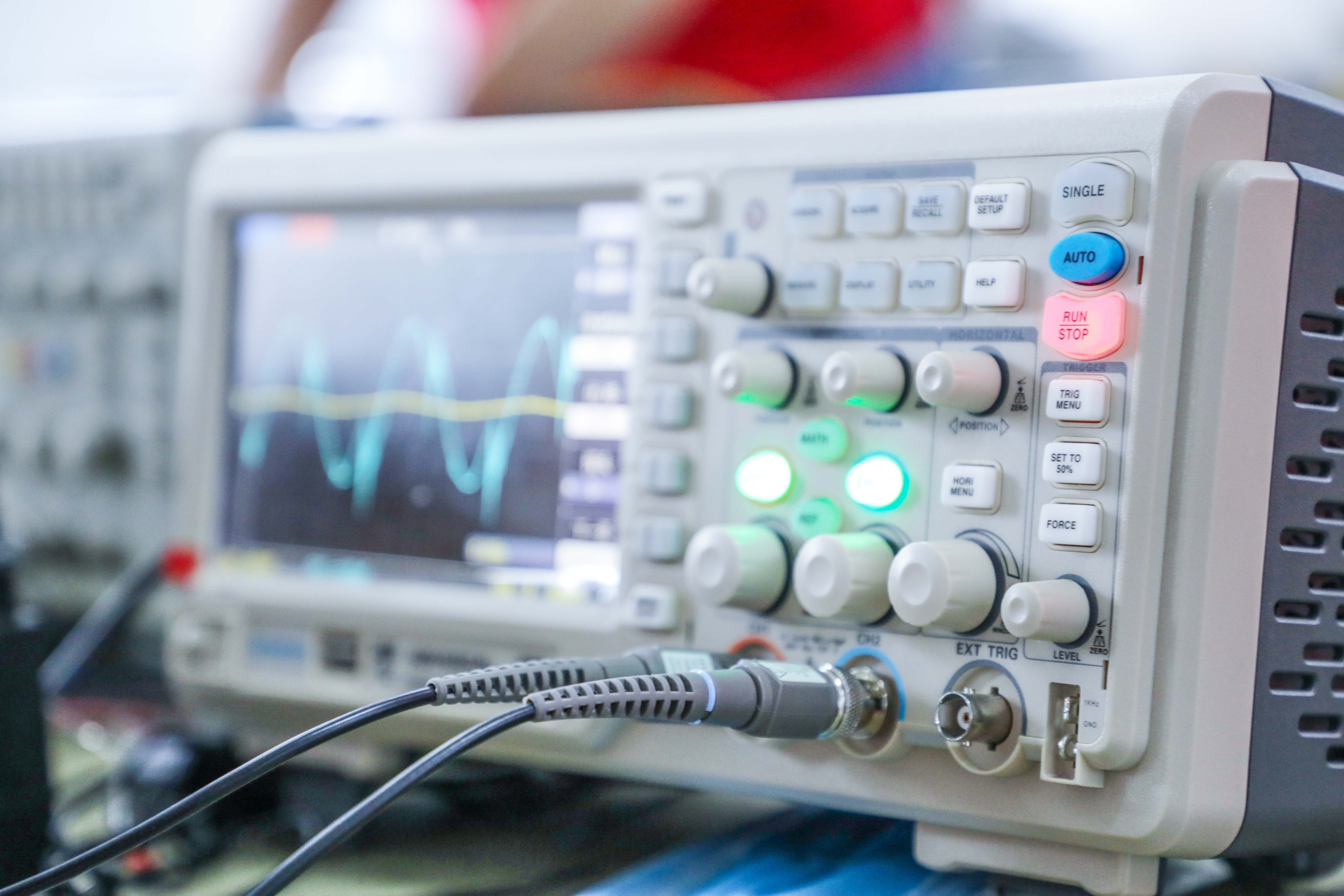

Widely used in radio equipments and instrumentations, such as wireless communication systems, televisions, test equipments and other fields.
