N

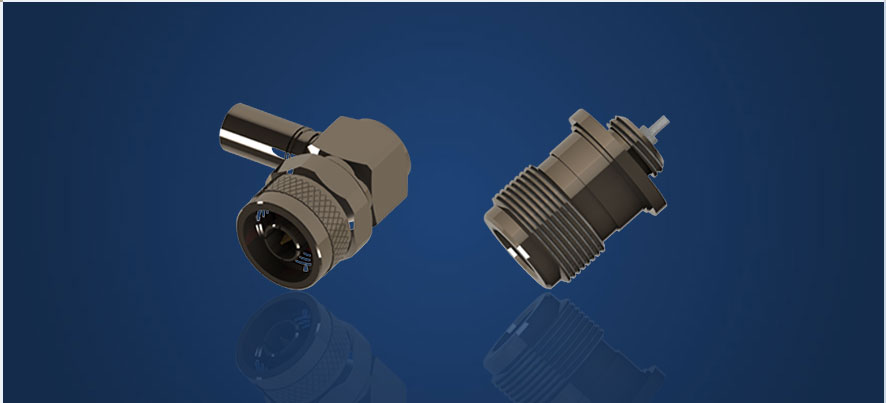

The N-type series of RF coaxial connector is a medium power connector, which is thread connected and is one of the most widely used connectors. The N-type connector can be used at a frequency of up to 18GHz, and it has two types of characteristic impedance: 50Ω and 75Ω.
The N-type connector has the characteristics of strong shock resistance, high reliability, excellent mechanical and electrical performance, and meet US military standard MIL-C-39012.

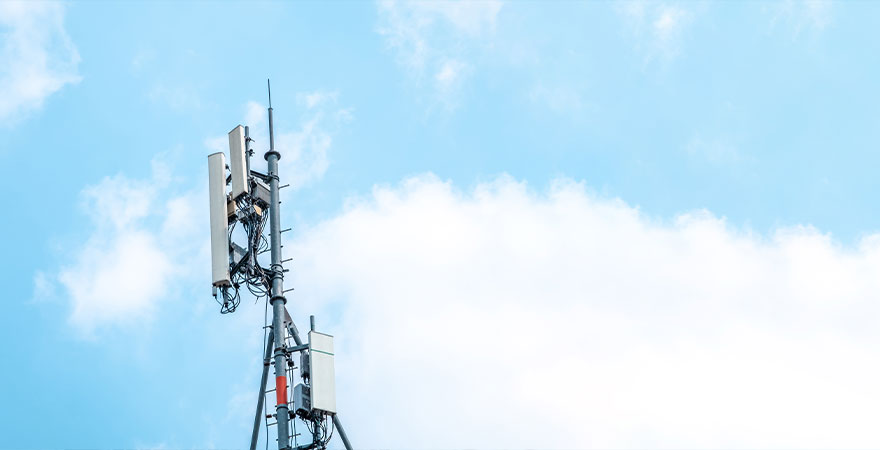

N-type  connectors are suitable for products such as base station equipments, satellite transmission systems and test instruments. Widely used for radio equipments and instruments under vibration and harsh environmental conditions, and connections in terrestrial launch systems.
Electrical Performance
Impedance 50 Ohm
Frequency range DC-18 GHz
Operating voltage 1000 V(rms)
Medium pressure 2500 V(rms)
Conductor resistance Inner conductor: ≤1.0 mΩ (initial value)
Outer conductor: ≤0.2 mΩ (initial value)
Insulation resistance ≥5000 mΩ
VSWR Straight: ≤1.30 (typical value)
Right angle: ≤1.35 (typical value)
Mechanical Characteristics
Center pin pull-in force ≤2 lbs
Center pin pull-out force ≥2 ounce
Center pin retention ≥6 lbs
Durability 500 times
Application
  • Suitable for special applications, where a very high degree of protection is required, or other connectors cannot meet the requirements of environmental factors such as temperature, pressure or vibration.
  • It is often used in harsh working environments or in the testing fields that require much more frequency of pluging.
Products Series
  • Connectors for coxial cables
  • PCB mounting connectors
  • Adapter
  • Tool
