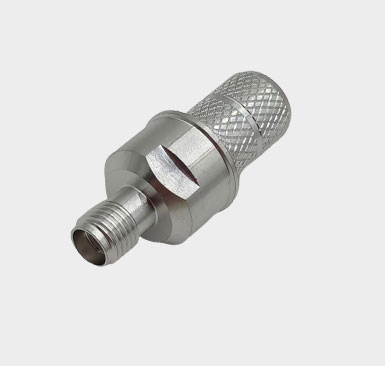

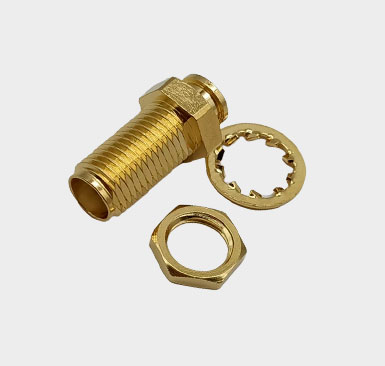

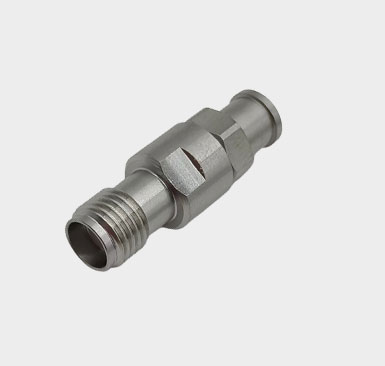

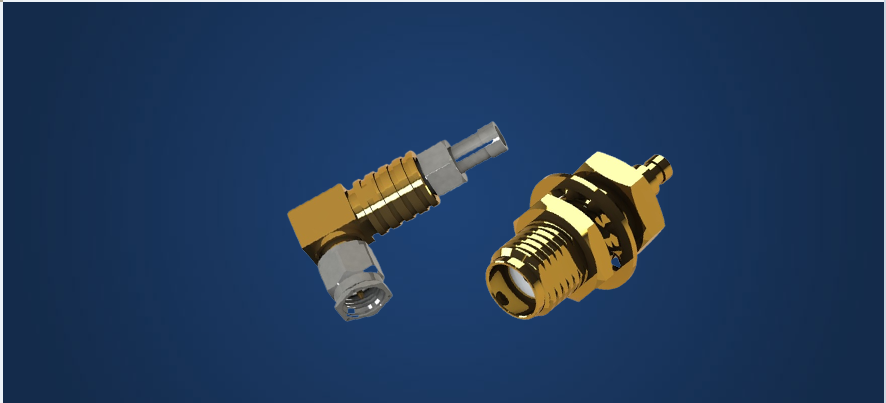

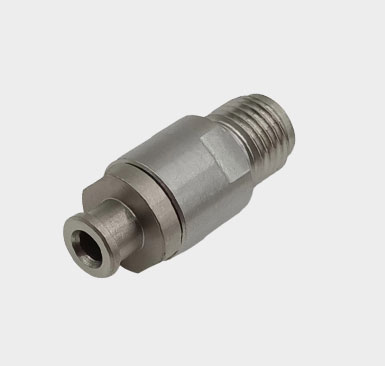

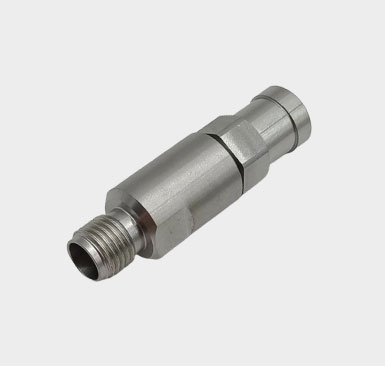

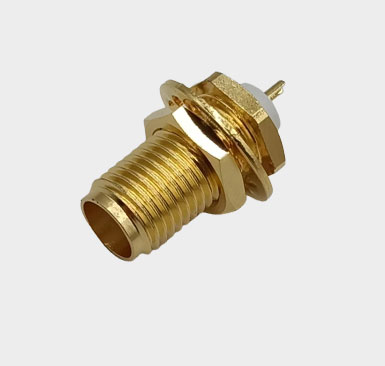

Application
- Telecommunication
- Industrial
- Test & measurement
- Defence or aerospace applications
| Electrical Performance | |
|---|---|
| Impedance | 50 Ohm |
| Frequency range | DC-27 GHz |
| Operating voltage | RG178:170 V(RMS) |
| RG316,RG405:250 V(RMS) | |
| RG142,RG402:335 V(RMS) | |
| Dielectric Withstanding Voltage | RG178:500 V(RMS) |
| RG316,RG405:750V(RMS) | |
| RG142,RG402:1000V(RMS) | |
| Conductor resistance | Inner conductor: ≤3.0 mΩ (initial value) |
| Outer conductor: ≤2.0 mΩ (initial value) | |
| Insulation resistance | ≥5000 mΩ |
| VSWR | Straight: ≤1.30 (typical value) |
| Right angle: ≤1.35 (typical value) | |
| Mechanical behavior | |
|---|---|
| Thread pull force | ≥60 lbs |
| Thread torque | ≥15 inch·lbs |
| Center pin pull in force | ≤2 lbs |
| Center pin pull out force | ≥1 ounce |
| Center pin retention | ≥6 lbs |
| Durability | >500Cycles |
